Mercedes Benz 164 Front SAM

Front SAM control unit
Front SAM control unit
The front SAM control unit (N10)
The front SAM control unit (N10)

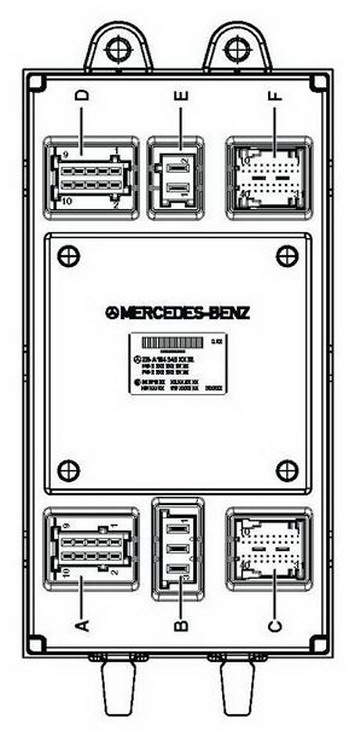

The front SAM control unit (N10) is located in the under floor assembly on the front passenger side.
· Master control unit for the exterior lights function except the turn signal functions
Model 164.1
Model 251
· Interior lights (IBL)
Model 164.1
Model 251
· Wiper system (WSA)
Model 164.1
Model 251
· Headlamp cleaning system (HCS [SRA])
Model 164.1
Model 251
· Heated seats (HS [SIH])
Model 164.1
Model 251
· Power windows (EFH)
Model 164.1
Model 251
· Central locking (CL [ZV])
Model 164.1
Switching of consumers
• Left front lamp unit (complete)
• Right front lamp unit (complete)
• Left front fog lamp
• Right front fog lamp
• Left front side-marker lamp I
• Right front side-marker lamp I
• Front footwell illumination
• Rear footwell illumination (with code U61)
• Washer pump
• Washer nozzle heater (with code 875)
• Center washer nozzle heater (model 251 with code 875)
• Headlamp cleaning system washer pump (with code 600)
• Heated front seats (with code 873)
• Left rear power window motor
• Right rear power window motor
• Left rear door central locking motor
• ADS air spring wake-up signal (with code 489)
• Charging of additional battery
Scanning of switches, pickups and sensors
• Left rear power window switch
• Right rear power window switch
• Left rear power window Hall sensor (USA)
• Right rear power window Hall sensor (USA)
• Parking brake indicator switch
• Coolant level indicator switch
• Windshield washer fluid level indicator switch
• Right front brake pad contact sensor
• Right rear brake pad contact sensor
• Status of additional battery
• Brake fluid sensor
Switching the following relays
• Wiper on/off relay
• Wiper stage 1/stage 2 relay
• Fanfare horn relay
• Windshield wiper park heater relay (model 251)
• Interior/engine compartment circuit 15 relay
• Charging of additional battery
Scanning and emitting the following signals
• Circuit 31b
• Circuit 61 (engine M113 only)
• Circuit 58d
• Air suspension wake-up signal (output only)
Voltage supply for the following control units
• No voltage supply for control units
CAN connections
• CAN link between front SAM control unit and cockpit CAN-B voltage distributor (plug F)
CAN signals
The front SAM control unit (N10) is a device on the CAN-B in the overall network.
