Mercedes Benz 215 Passenger SAM Control Units

Locations
Locations
Top view
Top view
Location

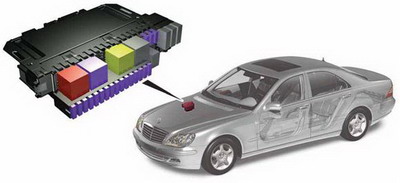

The right front SAM control unit (N10/7) is located in the right front control unit box in the engine compartment.
Note
The fuse and relay block can be separated from the control unit.
Control
· Exterior lights
Model 215 and Model 220.02/06/07/12/16/17
· Interior lights (IBL)
Model 215 and Model 220
· Wiper system (WSA)
Model 215, 220
· Automatic air conditioning (AAC [KLA])
Model 215 and Model 220
· Headlamp cleaning system (HCS [SRA])
Model 215 and Model 220
· Stationary heater (STH)
Model 215, 220 up to 31.8.02 and Model 215, 220 as of 1.9.02
· Fanfare horns
Model 215 and Model 220
Switching of consumers
• Right front lamp unit except right low beam
• Left low beam
• Right front fog lamp
• Right front side-marker lamp (USA) & (CANADA)
• Front footwell illumination
• Rear footwell illumination
• Glove box lamp
• Washer pump
• Washer nozzle heater (with code 875)
• Washer nozzle hose heater (with code 875)
• Headlamp washer pump (with code 600)
• Coolant circulation pump
Scanning of switches, pickups and sensors
• Circuit 61
• Right front brake pad contact sensor
• Coolant level switch
• Washer fluid indicator switch
• ATA [EDW] hood switch (with code 551)
• ATA [EDW] glove comp. contact (with code 551)
Switching the following relays
• Polarity reverser relay for Motronic and chassis control units
• Polarity reverser relay for diesel control
• Relay for fanfare horns
• Relay for transmission oil cooler
Voltage supply for the following control units
• No voltage supply for control units
CAN connections
• CAN link between right front SAM control unit (N10/7) and cockpit CAN-B voltage distributor (plug 2)
CAN signals
The right front SAM control unit (N10/7) is a device on the CAN-B in the overall network.
